3000 밀리미터 폭 9 롤러 강철판 교정기
|
제품 상세 정보:
결제 및 배송 조건:
|
상세 제품 설명
| 상품 이름: | 기계를 곧게 펴는 판 | 용법: | 금속 시트판 교정 |
|---|---|---|---|
| 애플리케이션: | 다중 산업 적용 | 판 간격: | 20 밀리미터 |
| 판 폭: | 1500~3000mm | 플레이트 항복 강도: | 245MPa, 345MPa |
| 스트레이트에링 롤러 수량: | 9pcs | 작업롤 설계: | 상위 4 PC, 낮은 5 PC |
| 강조하다: | machine,20mm 강철판 교정기,OEM 강철판 교정기를 평평하게 하는 3000 밀리미터 플레이트 |
||

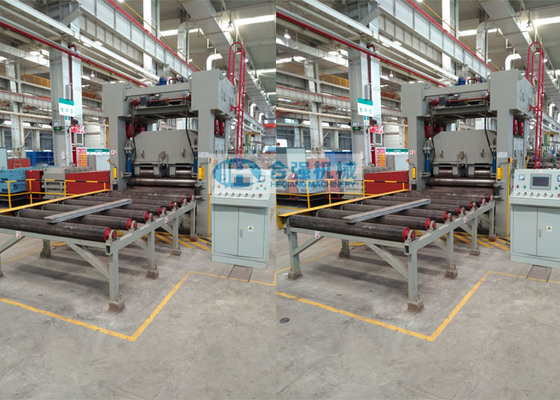

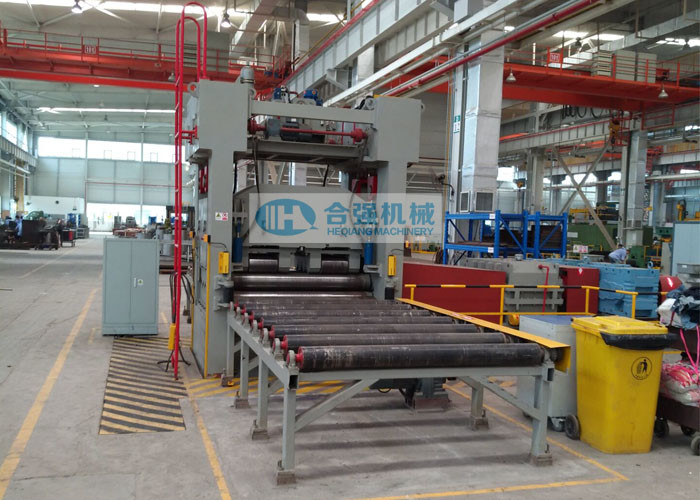

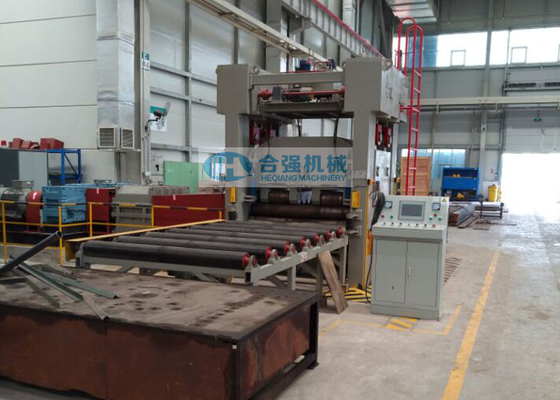

20mm Thick 3000mm Width 9 Roller Steel Plate Straightening Machine
Application scope:
This plate straightening machine is applicable for fine leveling of normal/medium plate, high-precision and high-strength plates, suitable for both steel and stainless steel plates.
Technical Parameters:
| Machine type | 9-roller steel plate straightening machine |
| Model No. | HQW43-20x3000 |
| Plates to be leveled | 245MPa & 345MPa steel an stainless steel plates |
| Maximum plate thickness | 20 mm |
| Minimum plate thickness | 5 mm |
| Maximum plate width | 3000 mm |
| Plate yield limit | 245 MPa & 345 MPa |
| Plate Leveling speed | 2~7 m/min adjusable |
| Work roll quantity | 9 pcs |
| Work roll layout | Upper with 4 rolls and Lower with 5 rolls |
| Work roll diameter | 200 mm |
| Roll spacing | 220 mm |
| Support roll quantity | 2 columns (total 22 rolls) |
| Downpress stroke | 70 mm (-10 mm ~ +60 mm) |
| Downpress speed | approx.35 mm/min |
| Leveling accuracy | Not more than 0.5 m/m2 |
*Above parameters are indicative and can be modified as per customers's actual requirements.)
Machine Features:
- The machine is a mechanical type. It's consisted of machine frame,movable crossbeam, lower cross beam, mani transmission evice, work roll assembly, support roll assembly, downpress mechanism, balance device, guide rolls and electrical control system etc.
- It's suitable for the leveling of medium plate, high-precision and high strength plate.
- Need multiple reciprocating leveling for thin plates.
- Overall steel welding frame structure, carried out stress annealing relief treatment after welding. The frame structure with high strength and rigidity.
- The main machine is equipped with side vertical roller to limit the deviation of steel plate during conveying.
- The work rolls and support rolls are all carried out surface hardening treatment and flaw detection.
- All the roll bearings are self-aligning roller bearings.
- With Automatic feeding and discharging roller table to facilitate the feeding and exiting of the straightening machine. The feeding roller table is equipped with a plate centering device and the rollers are powered.
- The sheets to be levelled can feed from both sides, and leveled repeatly.
- It's suitable for the leveling of medium plate, high-precision and high strength plates.
- Digital display, PLC control. Visual input, edit, modify and store process parameters.
- Siemens PLC, Balluff Displacement transducer.
Other Model for Optional:
|
Model No. |
Max Leveling thickness (mm) |
Min Leveling thickness (mm) |
Max Leveling width (mm) |
Plate yield limit (Mpa) |
Work roll diameter (mm) |
Work roll qty |
Main motor power (kW) |
Overall size (m) |
|
HQW43-140x4000 |
140 |
40 |
4000 |
240 |
680 |
7 |
2x200 |
19.2x7.2x13.6 |
|
HQW43-120x4000 |
120 |
30 |
4000 |
240 |
660 |
7 |
2x200 |
18.6x6.6x12.2 |
|
HQW43-80x4000 |
80 |
25 |
4000 |
800 |
680 |
7 |
2x450 |
19.88x7x13.2 |
|
HQW43-60x4000 |
60 |
16 |
4000 |
240 |
420 |
7 |
2x110 |
14.8x3.8x7.5 |
|
HQW43-32x3150 |
32 |
10 |
3150 |
800 |
370 |
7 |
2x300 |
13.7x3.4x7.2 |
|
HQW43-22x2200 |
22 |
5.5 |
2200 |
1500 |
340 |
9 |
2x180 |
12.1x3.2x6.9 |
|
HQW43-16x2000 |
16 |
5 |
2000 |
1500 |
280 |
9 |
2x160 |
11.2x3.0x5.9 |
|
HQW43-12x2500 |
12 |
4 |
2500 |
960 |
200 |
11 |
90 |
11.2x2.4x5.8 |
(*Above parameters are indicative and can be modified as per customers's actual requirements.)
