이동하는 경편궤도 워크샵 장비, 차륜브레이크 디스크 볼트 디스마운팅 기계
|
제품 상세 정보:
결제 및 배송 조건:
|
상세 제품 설명
| 상품 이름: | 휠 브레이크 디스크 디스만팅 기계 | 애플리케이션: | 경편궤도 저장소, 차량 기업 |
|---|---|---|---|
| 기능: | 휠과 브레이크 디스크의 디스만팅 볼트 | 왜곡 토크: | 300Nm |
| 전기 렌치: | 2 PC | 제어: | 자동인 CNC |
| 전원 공급기: | 380V/50Hz, 3 단계 AC | 애프터 서비스는 제공되었습니다: | 해외로 기계류를 서비스할 수 있는 엔지니어들 |
| 강조하다: | 1355 밀리미터 경편궤도 워크샵 장비,2.2kW 경편궤도 워크샵 장비,300Nm 브레이크 디스크 볼트 디스마운팅 기계 |
||
Locomotive Wheel Brake Disc Bolt Dismounting Machine with 300Nm Torque, Railway Workshop Equipment
Application scope:
This wheel brake disc bolt dismounting machine is mainly used for the dismanting work of the connection bolts for railway locomotive wheels and brake disc. The control system can real-time monitor the operation and record, save and export the dismanting data (torque and angle).
Main Technical Parameters:
| Torque of the electric wrench | Not more than 300 Nm |
| Electric wrench quantity | 2 pcs |
| Wheel diameter | 1120~1355mm |
| Center distance of the brake disc bolt hole | 810~950 mm |
| Indexing of the brake disc bolt hole | 20° (adjustable) |
| Wheel bore diameter | 252 mm (adjustable) |
| Wheel weight | 677 kg |
| Brake disc weight | 2x93 kg |
| Motor power | 2.2kW |
| Machine overall dimension (LxWxH) | 3200x850x1650 mm |
| Main power supply | 380V/50HZ, AC 3 phase |
| Noise level during working | Not more than 75 dB |
| Air supply | 0.4~0.6 MPa |
| Ambient temperature | -5°C ~ 45°C |
| Relative humidity | Not more than 95% |
(*The detail parameters can be adjusted as per customer's actual requirements.)
Main Features:

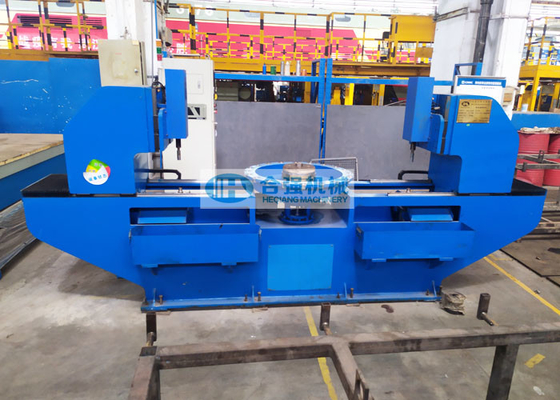

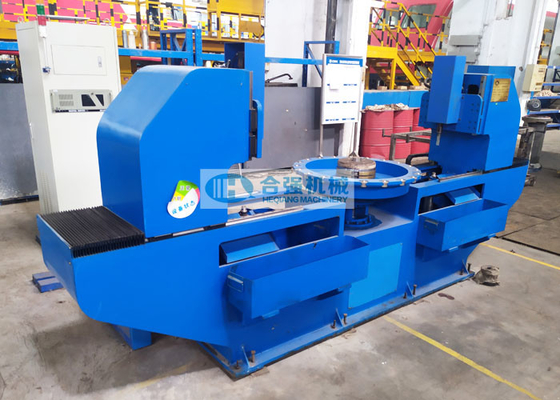

- The machine is mainly composed of machine body, brake disc dismanting device, brake disc positioning and locking device, rotary table, brake disc initial positioning device, bolt collection box, eclectrial control system and etc.

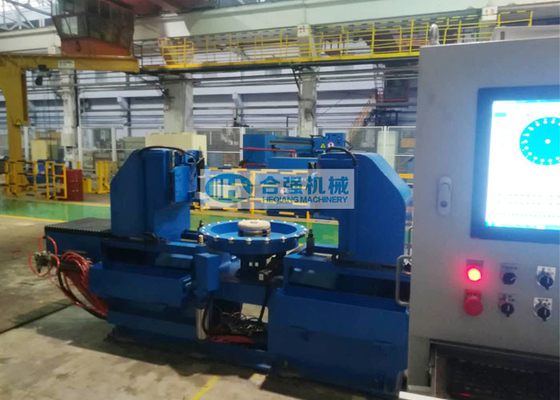

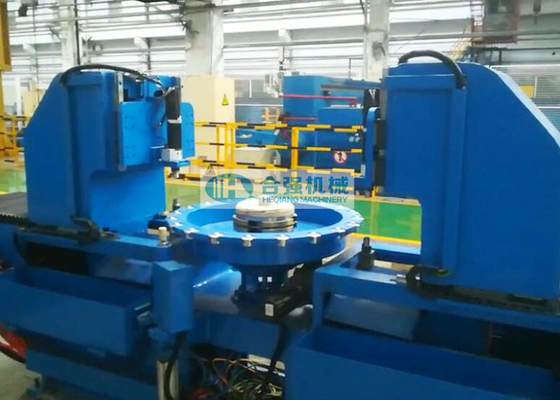

- Dismanting process: first lift the wheel with brake disc onto the rotary table, the expansion device will fix the wheel on the rotary table. The dismanted bolts will fall into the bolt collection box. After one pair of bolt is dismanted, the servo motor will drive the rotary table rotate to the next bolt position for the dismanting work. After all bolts are dismanted, the dismanting device will return to the original position and the dismanting work is completed.
- The machine can automatically position the wheel, no need manually rotate the wheel to fit the machine.
- The dismanted bolts can be falled into the collection box, no need the operator to collect them.
- The machine has the function of automatic positioning and clamping. One time loading to complete all the bolts' dismanting automatically.
- Only one operator required to complete the whole tightening procedures.

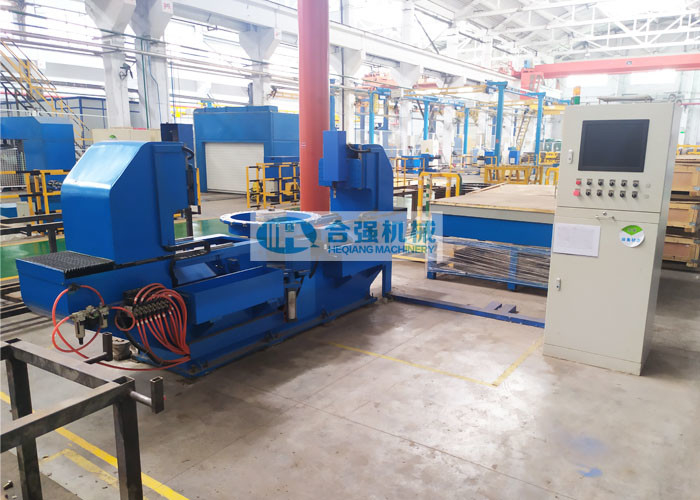

- Siemens PLC and AdvanTech industrial computer to control and monitor the operation.
- The machine is a new equipment (including all parts, components and accessories), and manufactured with new high-quality materials.
- Metal components of equipment and instruments are rustproof and painted except machining surface and electroplating surface.
Technical Documents:
The following technical documents will be supplied along with the machine when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):
- Operating and maintenance instruction manual;
- General arrangement drawing, Electrical schematic diagram;
- Foundation drawing;
- Spare part list, Special tool list;
- Product certificate / Factory Acceptance Certificate, etc
