Automatic Railway Bearing End Bolt Tightening Equipment 60rpm 450Nm
Automatic Railroad Bearing End Bolt Tightening Equipment

Application scope:

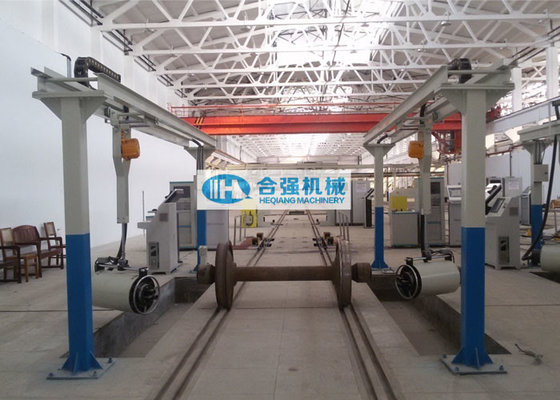

The Automatic Railroad Bearing End Bolt Tightening equipment is used for the tightening work of the roller bearing end bolts for railway vehicle wheelsets. The tightening equipment is mainly composed of 2 sets of tightening shaft, 2 frame racks and control system. Each set of tightening shaft can tighten 3 bolts simultaneously.

Technical Parameters:

(*The detail parameters can be adjusted as per customer's actual requirements.)

Main Features:

• The tightening equipment is mainly composed of 2 sets of tightening shaft, 2 frame racks and control system. Each set of tightening shaft can tighten 3 bolts simultaneously.
• The equipment can record the tightening data, display it on the controller screen and print it out as per required.
• The tightening shaft has the function of forward rotation and reverse rotation, and the rotation direction can be easily changed by editing the tightening program.
• The torque can be closed-loop controlled by the torque sensor to accurately control the tightening torque.
• The tightening process has arbitrary programming function: in each tightening step, the tightening speed can be changed by programming (stepless speed change).
• Synchronization function: when any tightening shaft completes a tightening step, it will wait for other shafts to complete this step, and then start the next step together to keep the tightening shaft synchronized.
• Alarm information and self diagnosis function: when there is an error or fault in the smart wrench, the equipment will send out alarm information, display and record the result of self diagnosis on the screem, so as to facilitate the maintenance personnel to deal with it in time.
• Computer communication and editing function: the equipment has the function of network communication, and can communicate with the computer through Ethernet or serial port, so as to edit the tightening program.
• Tightening result display and printing function: the tightening result and data will be displayed on the display screen of the controller and printed out. The control system can display the tightening curve of tightening process in real time.
• Over-current automatic protection function: the system has current protection circuit, over-current will automatically shut down the system and alarm.
• Over-voltage automatic protection: the system has voltage protection circuit, over-voltage or under voltage will automatically shut down the system and alarm.
• Over-temperature automatic protection: the system has a temperature sensor, no matter the motor or servo is overheated, it will automatically shut down the system and give an alarm.


Technical Documents:
The following technical documents will be supplied along with the machine when delivery in hard copy and soft copy in English language (provide E-copy to the buyer before delivery):

• Operating and maintenance instruction manual;
• General arrangement drawing, Electrical schematic diagram;
• Foundation drawing;
• Spare part list, Special tool list;
• Product certificate / Factory Acceptance Certificate, etc
